5G Macro Base Station Products

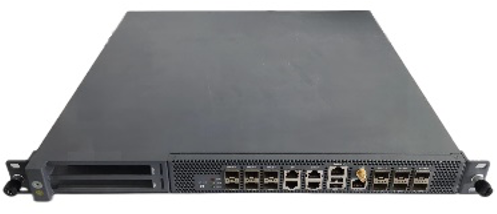

5G BBU Products

Specification Value
Slot Structure 5G 5ms single period (Frame structure: DDDDDDDSUU), 2.5ms single period (Frame structure: DSUUU), 2.5ms dual period (Frame structure: DDDSUDDSUU)
Operating Bandwidth 100MHz and other bandwidths
Max Supported Cells per Base Station 6*2T2R/4*4T4R
Max Online Users per Base Station 6*1200
Max Active Users per Base Station 1 RJ45
Management Ethernet Port 6*400
Clock Synchronization GNSS/1588V2, 1PPS+TOD input, 1PPS+TOD output
Operating Voltage 220VAC or -48VDC
Max Power Consumption > 200W
Temperature Operating: -5℃～+55℃
Storage: -40℃～+70℃
Humidity Operating: 10%-85% RH
Storage: 5%-90% RH
Dimensions (W*H*D) 1U 19'' 435 * 44.3 * 423（mm）
Weight Net weight: 6.92kg
Cooling 5 adjustable-speed fans

5G RRU Products

Specification Value
Supported Frequency Band 3300~3600MHz, TDD, customizable bands
Transmit Power 4*20W
Signal Bandwidth 100MHz
Transmit Power Accuracy ±2.5dB (full temperature range)
Number of Channels 4T4R
Receiver Sensitivity ≤-95.6dBm/channel
Device Type Outdoor
Antenna Configuration External
Dimensions 300mm×390mm×110mm
Power Supply DC +48V
Weight 17kg
Power Consumption 330W
Installation Wall-mounted, pole-mounted
Cooling Method Natural convection
Protection Rating IP65
Operating Temperature -40℃~55℃
Operating Humidity 5%~95%
