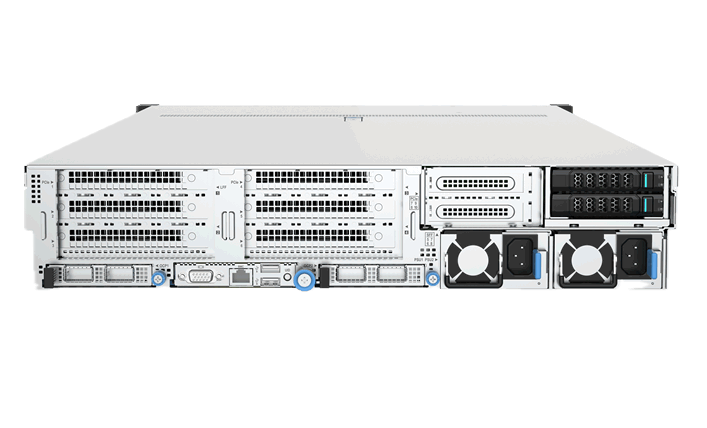

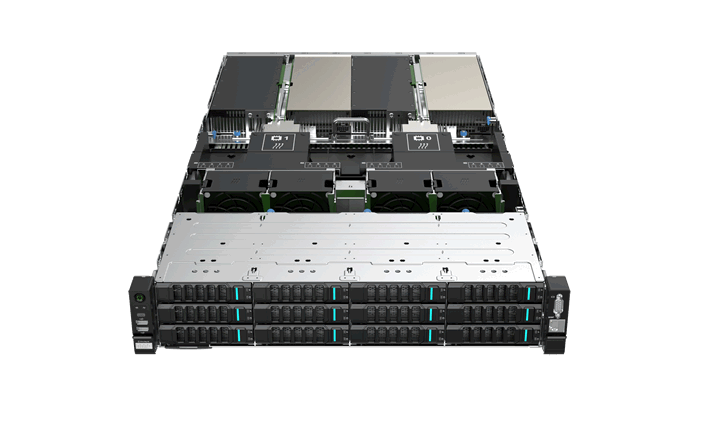

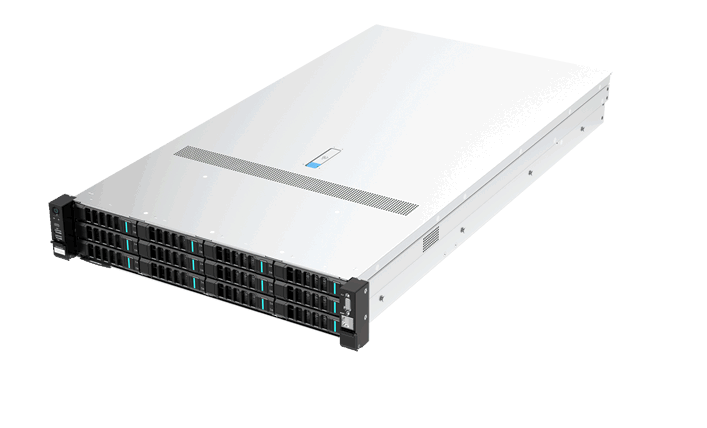

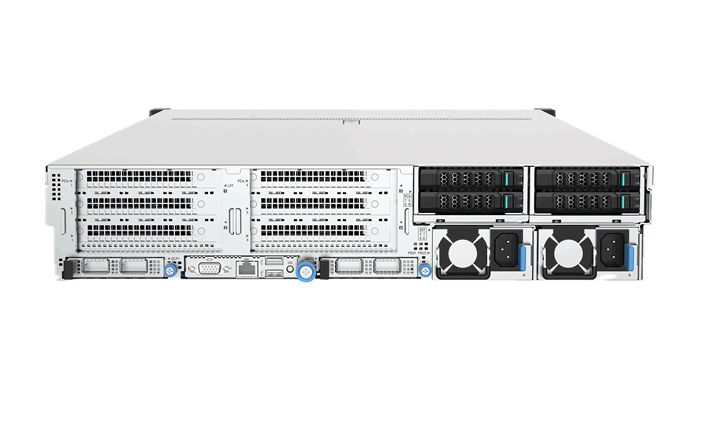

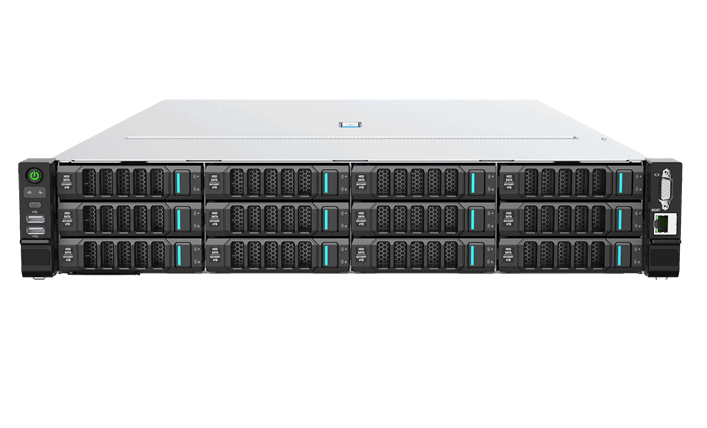

R7260 X6 Server

The new generation R7260 X6 server supports up to two cpus and provides up to 50% bandwidth improvement with 8-channel 5600MT/sDDR5 memory technology. Flexible scalability with support for 22 PCIe slots and up to 49 hard disk slots. 96% power efficiency and a standard operating temperature design of 5 ° C to 45 ° C provide users with higher energy efficiency returns.

  • Integration of open ecology
    For the future of Intelligent data

    Open Ecological Design based on OCSP specification
    Server Management based on Open BMC

  • Flexible and elastic configuration
    Meet expansion requirements

    Up to 32 memory slots
    Up to 49 hard disk slots
    Up to 22 PCIe slots

  • Modular installation and deployment
    Easy and fast maintenance

    Modular design easy maintenance
    Fast disassembly, core parts hot swap

Application scenario

  • Data Center
    Virtualization
    Cloud computing

  • High Performance Computing
    Data analysis
    Scientific research

  • Confined Space
    Virtualization
    Private cloud

  • Low Latency
    Financial applications
    Trading systems
  • 1
Technical specification

Name Specifications
Processor Maximum support 2 cpus, a single maximum 64 cores, maximum power 385W, support HBM technology
Chipset C741
Memory Supports up to 32 DDR5 memory slots at rates up to 5600MT/s, supports RDIMMs or LRDIMMs, and has capacities up to 8TB
CXL 1.1*
Storage controller Optional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
Storage extension Supports up to 49 hard drives
Supports up to 24 3.5-inch hard drives (12 front, 12 internal)
Supports up to 45 2.5-inch hard drives (25 front, 10 internal, 10 rear), Additional support for 4 E1.S hard disks
Support for up to 34 NVMe U.2 hard disks (24 front, 10 rear)
Optional SATA/NVMe* M.2 options
PCIe expansion Up to 22 PCIe expansion slots
Up to 20 standard PCIe expansion slots (10 rear + 10 middle)
Up to 2 OCP 3.0 slots
GPU support Support up to 4 double-width GPU cards (single card power consumption up to 450W)
Management Software Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
Network One Gbps dedicated management network port on board
Two OCP3.0 network adapters
Optional Network adapters based on standard PCIe slots
I/O interface Standard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear)
Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port
Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports
Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port
Security Support chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
Power supply Optional 800 w / 1300 w / 1600 w / 2000 w / 2600 w / 2700 w / 3200 w CRPS standard power supply, support of 1 + 1 redundancy
Operating temperature 5 ° C ~ 45 ° C (The operating temperature can be affected by different configurations. For details, see the product technical documentation.)
Appearance/Chassis size 2U standard chassis
87mm(H)*447.4mm(W)*800mm(D) (without safety panel)
