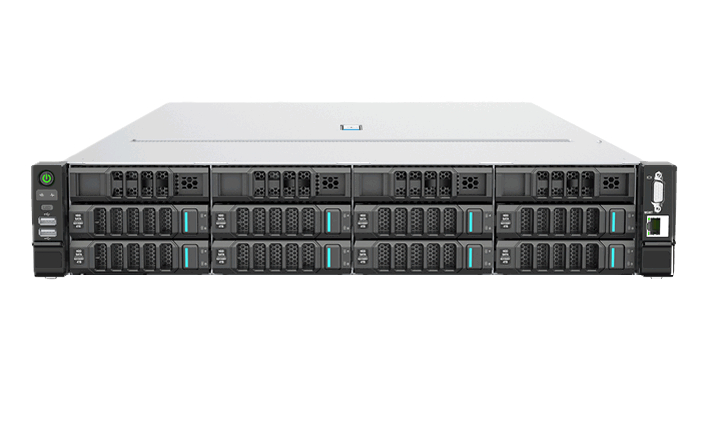

R7260 X5 Server

The R7260 X5 server supports up to two cpus for up to a 52% improvement in processor floating-point performance and a 42% increase in the number of cores, combined with 8-channel 3200MT/s DDR4 memory technology to provide users with up to a 60% increase in bandwidth. Flexible scalability with support for 17 PCIe slots and up to 45 hard disk slots. 96% power efficiency and a standard operating temperature design of 5 ° C to 45 ° C provide users with higher energy efficiency returns.

  • Integration of open ecology
    For the future of Intelligent data

    Open Ecological Design based on OCSP specification
    Server Management based on Open BMC

  • Flexible and elastic configuration
    Meet expansion requirements

    Up to 32 memory slots
    Up to 45 hard disk slots
    Up to 17 PCIe slots

  • Modular installation and deployment
    Easy and fast maintenance

    Modular design easy maintenance
    Fast disassembly, core parts hot swap

Application scenario

  • Data Center
    Virtualization
    Cloud computing

  • High Performance Computing
    Data analysis
    Scientific research

  • Confined Space
    Virtualization
    Private cloud

  • Low Latency
    Financial applications
    Trading systems
  • 1
Technical specification
Name Specifications
Processor Supports up to 2 cpus, each with up to 40 cores, maximum power 270W
Chipset C621A
Memory Support up to 32 DDR4 memory slots, maximum speed 3200MT/s, support RDIMM or LRDIMM
Storage controller Optional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
Storage extension Supports up to 45 hard drives
Supports up to 20 3.5-inch hard drives (12 front, 4 internal, 4 rear)
Supports up to 45 2.5-inch hard drives (25 front, 10 internal, 10 rear)
supports up to 28 NVMe U.2 hard drives (24 front, 4 rear) 4-block rear)
Optional SATA/NVMe* M.2 Options
PCIe expansion Up to 17 PCIe expansion slots
Up to 15 standard PCIe expansion slots (10 rear + 5 middle), up to 6 x16 slots
Up to 2 OCP 3.0 slots
GPU support Support up to 4 double-width GPU cards (single card power consumption up to 450W)
Management Software Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
Network One Gbps dedicated management network port on board
Two OCP3.0 network adapters
Optional Network adapters based on standard PCIe slots
I/O interface Standard RJ45 management network port, 1 rear VGA port, 4 USB ports (2 front, 2 rear)
Optional expansion card supports 2 rear USB ports, 1 USB Type-C management port, 1 RJ45 management network port
Left mounting ear: Two USB 2.0 ports, optional two USB 3.0 ports
Right mounting ear: Optional smart mounting ear supports one VGA, one management network port, or one Type-C management port
Security Support chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
Power supply Optional 550 w / 800 w / 1300 w / 1600 w / 2000 w / 2600 w / 2700 w / 3200 w CRPS standard power, support of 1 + 1 redundancy
Operating temperature 5 ° C ~ 45 ° C (The operating temperature is affected by different configurations, please refer to the product technical documentation for details)
Appearance/Chassis size 2U standard chassis
87mm(H)*447.4mm(W)*800mm(D) (without safety panel)
