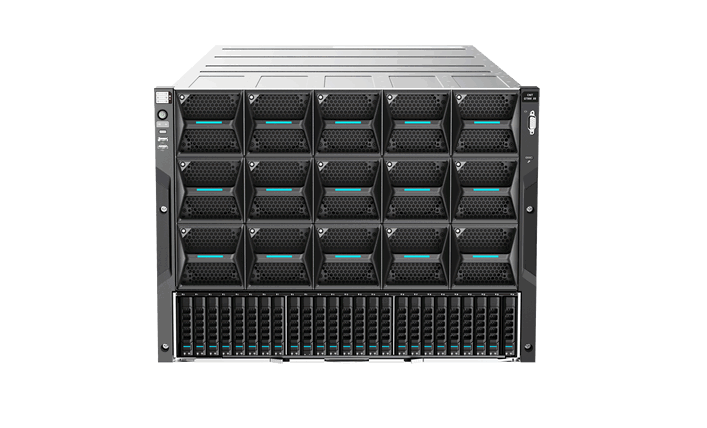

G7868 X6 Server

The G7868 X6 server is compatible with the new HGX H800 8-GPU module or the standard OAM2.0 module, and the modular design fully improves the heat dissipation and maintainability of the whole machine, making the powerful performance of the GPU fully play. The main control unit supports a maximum of two cpus and integrates the 8-channel 5600MT/s DDR5 memory technology to provide users with up to 50% bandwidth improvement. With the support of 18 PCIe5.0 slots and up to 25 hard disk slots, it can meet the requirements of various computing architecture solutions and further improve the system computing performance. It can be used in large-scale training, high performance computing (HPC), large data centers and other large computing scenarios.

  • Compatible with a variety of computing modules
    Release superior computing performance

    Compatible with HGX H800 8-GPU module or standard OAM2.0 module, fully meet the needs of large computing power scenarios;

  • Flexible topology design
    Suitable for different application scenarios

    Flexible switching of GPU topology to meet the requirements of various computing power scenarios; The PCIe card module can adjust resource allocation based on service requirements to fully release computing power performance.

  • Modular design
    Overall increase in maintainability

    Modular system design, the main control unit, computing unit, heat dissipation unit and PCIe card unit can support independent maintenance, to achieve easy operation and maintenance; Support liquid cooling modules to meet the heat dissipation requirements in multiple scenarios;

Application scenario

  • Large Module Application
    Module training
    Learning easoning

  • High Performance Computing
    Data analysis
    Scientific research

  • Data Processing
    Speech recognition
    Image processing

  • Data Center
    Virtualization
    Private cloud
  • 1
Technical specification
Name Specifications
GPU module GPU-GPU module (compatible with NV module and universal OAM2.0 module)
Processor Maximum support 2 cpus, a single maximum 64 cores,
Maximum power 385W
Memory Supports up to 32 DDR5 memory slots at rates up to 5600MT/s, supports RDIMMs or LRDIMMs, and has a capacity of up to 8TB;
Support CXL 1.1, support HBM technology
Storage controller Integrated 6Gb/s SATA controller; Optional 12Gb/s SAS HBA and 12Gb/s SAS RAID controller
Hard disk expansion System SAS/SATA/NVMe disk configuration:
Supports a maximum of 29 2.5-inch hard disks, of which a maximum of 12 NVMe hard disks and two onboard M.2
PCIe expansion Supports up to 18 PCIe 5.0 expansion slots
Supports up to 14 X16 PCIe 5.0 standard slots (6 from CPU, 8 from Switch)
Supports up to 6 X16 PCIe 5.0 FH standard slots
Supports 1 OCP3.0 onboard slot
Management Software Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
Network Support one OCP3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NIC
Security Support chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
Fan Fan Support 15 high-performance fans, N+1 hot-swappable redundant fans
Power supply Support six 3500W 54V platinum power supplies (4200W/5200W in the future), optional expansion of two 2000W/2400W/2700W/3200W
12V platinum power supplies, optional titanium power supply *, support N+N redundancy /N+1 redundancy
Operating temperature 5 ° C ~ 40 ° C (The operating temperature can be affected by different configurations)
Appearance/Chassis size 8U chassis
352mm (H) × 447mm (W) × 917mm (depth)
