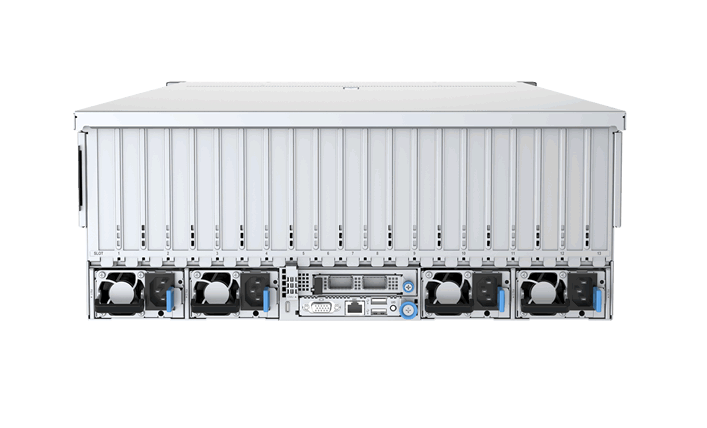

G7466 X5 GPU Server

The G7466 X5 server, which supports up to two cpus, can achieve up to 52% improvement in processor floating-point performance and 42% increase in the number of cores, combined with 8-channel 3200MT/s DDR4 memory technology, providing users with up to 60% bandwidth improvement. Flexible scalability with support for 16 PCIe4.0 slots and up to 50 hard disk slots. 96% power efficiency, as well as a standard operating temperature design of 5 ° C to 40 ° C, provides users with higher energy efficiency returns.

  • Multi-component computing engine for the future of intelligent data

    Multiple computing power, suitable for a variety of AI acceleration cards
    Set training, reasoning ability in one,
    to meet the needs of different AI loads on computing power.

  • Flexible topology for different application scenarios

    4 GPU topologies, suitable for different application scenarios
    Intelligent allocation of resources, driving efficient operation of computing power

  • Integrated computing, providing a cost-effective computing engine

    Up to 12 dual-width Gpus
    Up to 32 memory slots
    Up to 50 hard disk slots
    Up to 16 PCIe slots

Application scenario

  • Artificial Intelligence
    Intelligent security
    Intelligent driving

  • High Performance Computing
    Data analysis
    Scientific research

  • Confined Space
    Virtualization
    Private cloud

  • Deep Learning
    Model training
    Learning reasoning
  • 1
Technical specification
Name Specifications
GPU module 4U8 card — Pass through module 4U8 card /10 card /12 card *— Switch Module
Processor Support up to 2 cpus, a single maximum of 40 cores, maximum power 270W
Memory Support up to 32 DDR4 memory, maximum speed 3200MT/s, support RDIMM or LRDIMM
Storage controller Optional high-performance RAID controller, supporting RAID0/1/10/5/6/50/60
Storage extension System SAS/SATA/NVMe hard disk configuration:
Up to 24 3.5-inch hard disks
Up to 50 2.5-inch hard disks
Optional SATA/NVMe *M.2 options
PCIe expansion Supports up to 10 standard PCIe expansion slots
Supports up to 8 x16 standard PCIe expansion slots
Supports up to 1 OCP 3.0 slot 		Supports a maximum of 29 PCIe slots
Supports a maximum of 20 x16 standard PCIe slots
Supports a maximum of one OCP 3.0 slot (optionally replaced with one standard PCIe slot)
Management Software Integrated BMC management chip, supporting IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
Network Support one OCP3.0 NIC, optional 1/10/25/50/100/200/400GE PCIe standard NIC, optional dual-width DPU standard NIC
Security Support for chassis intrusion detection; Support PFR3.0 and SGX2.0 security technology; Support TCM/TPM security module
Fan Fans Support 8 8056 fans, N+1 hot-swappable redundant fans
Power supply Optional 2000W/2600W/2700W/3200W CRPS standard power supply, support 1+1 redundancy
Operating temperature 5℃ ~ 40℃ (the working temperature can be affected by different configurations)
Appearance/Chassis size 4U chassis
175mm (H) × 447mm (W) × 898mm (D)
